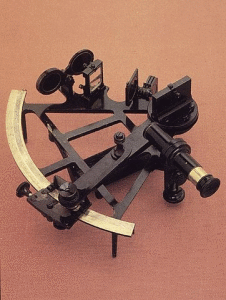

Figure 1: Sextant is Used by Navigators To Make Celestial Observations.

Figure 1: Sextant is Used by
Navigators To Make Celestial
Observations (Source).

I love to read stories of the sea and about the voyages made during the age of sail. I personally have never thought that I would have an opportunity for ocean sailing, but I recently began working with an engineer who is an avid sailor and teacher of sailing. He has sailed all over the world and recently trained another engineer in my group to sail. This newly trained sailor just returned from a trip to Bora Bora, which he found to be enjoyable and the sailing uneventful.

My discussions with this sailing instructor have given me some hope that I may yet get to do some sailing. This hope has reawakened my interest in some of the traditional technologies of sailing, like ropework and celestial navigation.

This post is the first in a series on correcting sextant (Figure 1) measurements for impairments. There are a number of measurements impairments: index error, refraction, and dip. This post will look at the impairment known as dip.



The angular distance of a celestial object above an observer's horizontal plane . There are published tables of the altitudes of various celestial objects. However, it is difficult to obtain a stable horizontal reference on a moving ship. The horizon provides a very stable reference and we can use a sextant to accurately measure the altitudes of celestial objects with respect to the horizon. Figure 2 shows the relationship between the horizontal and the horizon. The are related through the angle called dip.

Figure 2: Illustration of Dip With Respect to Horizontal.

Figure 2: Illustration of Dip With Respect to Horizontal (source).

dip of the horizon
Dip of the horizon is the the angular depression of the horizon below the horizontal plane. If we were taking sights on a stable land site, we could measure altitudes using  a theodolite with its horizontal established using a bubble level. At sea, however, nothing is stable except the horizon. We use a sextant at sea to measure the altitude of a celestial object with respect to the horizon and then use our dip calculation to change the altitude reference from the horizon to the horizontal.
dip short of the horizon
There are times when it may be necessary to measure the altitude of a celestial object even though we do not have a visible horizon because of an obstruction. However, if we the distance to the obstruction we can calculate a dip value that will allow us to correct our sextant measurement. We refer to this dip value as the dip short of the horizon. Typically, we will measure the altitude relative to the water level at the obstruction, which is a relatively stable reference.


I will be deriving commonly used formulas for dip to the horizon and dip short of the horizon. I should point out that I have seen many formulas for these dip values and I arbitrarily picked two formulas to investigate more closely here.


Standard Dip Short of the Horizon Table and Formula

Common Presentation

Figure 3 shows the values for the dip short of the horizon using a common table (Norie's) and formula (Bowditch). They give similar, though not identical results. In Figure 3, I show how you can take Norie's tabular data, fit it to a Bowditch-like formula, and you find that Norie's table and Bowditch's formula produce similar results.

I should note that the results for dip short the horizon used in both Norie and Bowditch ignore refraction. This makes sense because most obstructions used for navigation purposes would be relatively near, and the effects of refraction will be minimal.

Figure M: Dip Table and Formula.

Figure 3: Dip Short of Horizon Table and Formula.

Figure 3 also shows a snippet of Bowditch's formula dip short of the horizon, which is given by Equation 1.

Eq. 1 \displaystyle d_\text{short}=0.42857\cdot d+0.56514\cdot \frac{h}{d}


  • d is the distance to the obstruction [nautical miles].
  • h is the height above sea level of the observer's eye [feet].
  • dshort is the dip short of the horizon [arcmin].


Figure 4 shows the geometry of the dip short of the horizon situation.

Figure 4: Dip Short of Horizon Measurement Scenario.

Figure 4: Dip Short of Horizon Measurement Scenario.

Norie's Table Reference Voyager 1 current status

Figure 5 shows how you can derive an expression very similar to that of Bowditch's.

Figure 5: Derivation of Bowditch's Dip Short of Horizon Formula.

Figure 5: Derivation of Bowditch's Dip Short of Horizon Formula.

Amount of Earth's Curve

While the expression shown in Figure 5 is not identical to that in Bowditch, it is quite close.

Dip to the Horizon Formula

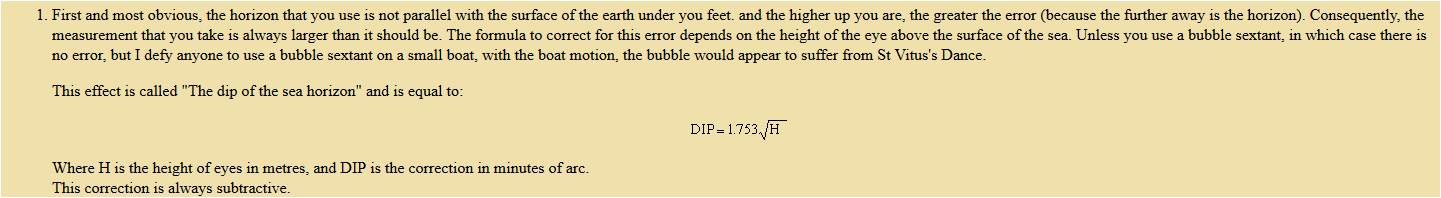

The dip to the horizon formula is shown in Figure 6 (source).

Figure 6: Commonly Used Dip of the Horizon Formula.

Figure 6: Commonly Used Dip of the Horizon Formula.

The derivation of this formula is similar to the dip short of horizon formula, but now we will model refraction. For the dip to the horizon, I have only seen formulas that are functions of the square root of the observer's height h.

Equation 2 shows a common expression for dip of the horizon, dhorizon.

Eq. 2 \displaystyle d_{horizon}=1.932\text{ arcsec}\cdot \sqrt{h}

Figure 8 shows how you can derive Equation 2.

Figure 8: Derivation of Dip to Horizon formula.

Figure 8: Derivation of Dip to Horizon formula.

distance to horizon Amount of Earth Curvature

My derivation yielded a function similar in form to the that shown in Figure 6, but with a larger coefficient term. The coefficient term is a function of the atmospheric conditions, and I assume that my atmospheric assumptions are different. The results differ by ~10%, which is well within the bounds of atmospheric variation.


I believe that I understand where the dip tables and formulas come from. I also understand that some dip equations take refraction into account (Figure 7) and some do not (Figure 3). Dip was a good impairment to use to kickoff my learning process – next are index error and refraction.

This entry was posted in Naval History, Navigation. Bookmark the permalink.

8 Responses to Correcting Sextant Measurements For Dip

  1. Stephen says:

    I'm just starting to pick this up, however I am struggling with Dip, in the high desert
    5-6000 ft is there a formula besides heading to the coast, so I can still practice inland.

    • Russell says:

      I too wanted to practice from an inland position. I worried about adjusting for eye height above sea level. I used my locations height above sea level and when I reduced my sight I found myself to be in Antártica! Clearly something was not right. Eventually I reasoned that Dip adjustment was not necessary when using artificial horizon:
      If you use an artificial horizon for your sight (I use engine oil in a shallow tray sitting within a clear tent made from plywood with polycarbonate windows), the sextant is adjusted so that the oil-reflected image of the sun is superimposed on the image in the sextant mirror. Because both images are referenced to the same horizontal plane (at sextant height but parallel to the oil surface), there is no Dip to the visible horizon on the curving earth’s surface, that would otherwise be used. The normal horizon is not horizontal to your eye height and therefore does require Dip adjustment.

  2. The article starts with a picture of a sextant. In sextant navigation, the correction is best given in minutes of of elevation (altitude angle), not distance to the horizon. A table is given in the Davis Mk 15 Sextant Manual: (5ft': -2'; 10ft: -3'; 15ft: -4'; 25ft: -5'; 40ft: -6') where the first number is eye height above sea level, and the second is the correction in minutes. Note one minute of latitude = one nautical mile.

  3. Kurt Lorenz says:

    I asked this same question, about altitude above sea level, of an experienced navigation instructor recently, and he replied that terrestrial altitude doesn't matter as long as you have a good horizon. Thus a high altitude lake at least three miles across gives as good a horizon as the ocean, and requires only standard dip. If your body of water is less than three miles across use the table for "Dip Short of the Horizon" to adjust dip in minutes of arc on the sextant reading . But the altitude of the lake does not matter.

    • Bill Ritchie says:

      "But the altitude of the lake does not matter."
      This is technically correct when considering only dip. However, for a sight of a celestial body at significant observer altitudes, the subsequent refraction correction should be reduced on account of the reduced atmosphere above the observer. This polynomial gives results that fit the International Standard Atmosphere, where AltM is observer altitude in metres. Multiply refraction correction by (1 - 0.00009519 * AltM + 0.0000000031 * AltM * AltM).
      At 1000M the refraction correction should be multiplied by 0.908.

  4. willy unger says:

    Hi, you mentioned you're measuring in the high desert, i.e. no water surface, right? Make sure the altitudes of where you're standing and your "horizon" match, otherwise you should factor in the total altitude difference between your eye and the horizon "target".
    Alternatively you can use an artificial horizon, i.e. a bowl of water with side walls to keep the wind from causing ripples on it.
    You can cobble your own or buy one from good ol' celestaire
    (I am not in any way affiliated with them, but bought my sextant, tables, etc. there).
    note that with artificial horizon your corrections are different!


    It was nicely explained here. I tried to measure height of a building staying at long distance. But I didn't know the proof. Thanks.

  6. Dick de Grasse says:

    I'm researching ancient astronomers and navigators at stone circles including Stonehenge during the Bronze Age. The observers understood basic right triangle trig. They made celestial body altitude measurements. Their height of eye was 100 to 400 feet above sea level at a site near the ocean but not near enough for a sea level horizon. Can I use the simple math correction: DIP in angle degrees = 0.97 x square root of h. Where h is the height above sea level. They subtract DIP to correct their altitude measurements.
